Filter with cartridge "SVOD" Iron removal FTBB20
ресурс: 200 м3 ( при содержании железа в воде 1 мг/л)
price: 3,200 UAH
Filter with cartridge "SVOD" Iron removal FTBB20
Filter with cartridge "SVOD" Iron removal FTBB20
Filter with cartridge "SVOD" Iron removal FTBB20 is designed to remove iron from tap water.
As a result of applying the filter, the content of iron in water is reduced to the standard values ​​(0.2-0.3 mg / l), and manganese and aluminum are also removed. Removed metal smell and taste from the water, protects household appliances from premature repairs.

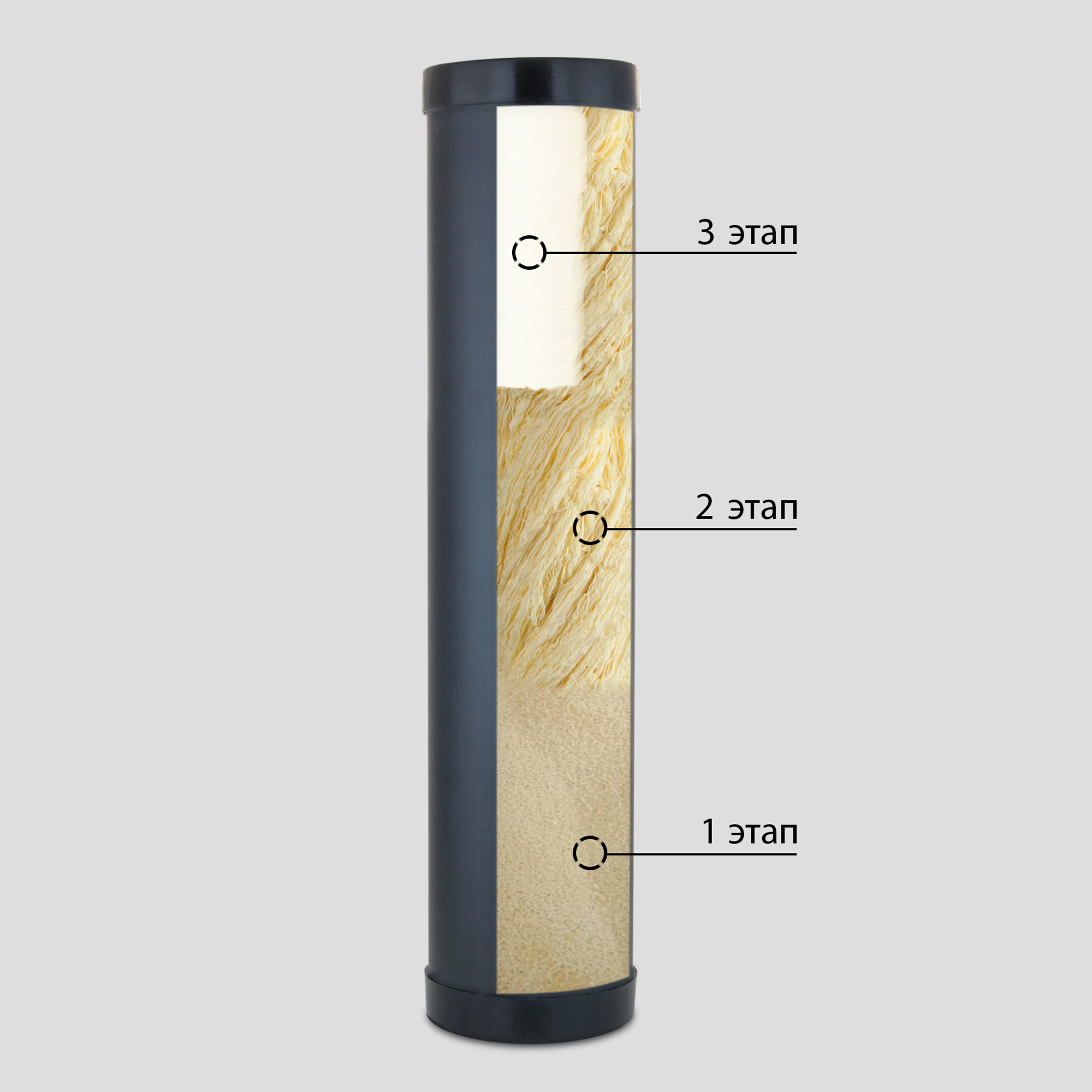

FILTER STRUCTURE
Filtering is carried out in three stages:
The first stage is the removal of cations of polyvalent metals (Ca, Mg, Fe, etc.);
The second stage is a filter for coarse purification and postoxidation of Fe (II) to Fe (III). When water passes through the fiber, iron compounds dissolved and dispersed in water are removed. The fiber is processed to form a complex of functional groups on its surface that ensure maximum extraction of iron compounds (iron oxides, iron salts, etc.).
The third stage is a mechanical fine filter with increased hydrophilicity. Thanks to the additional activation of the surface of the filter, the fine fine particles and other mechanical impurities are pre-trapped.
Specifications:
Resource - 200 m3 (with the iron content in water 1 mg / l) *
The temperature of the water passing through the cartridge is from 5 ° C to 40 ° C
Reduction of water pressure when passing through the cartridge - from 0.2 to 0.4 kgf / cm2

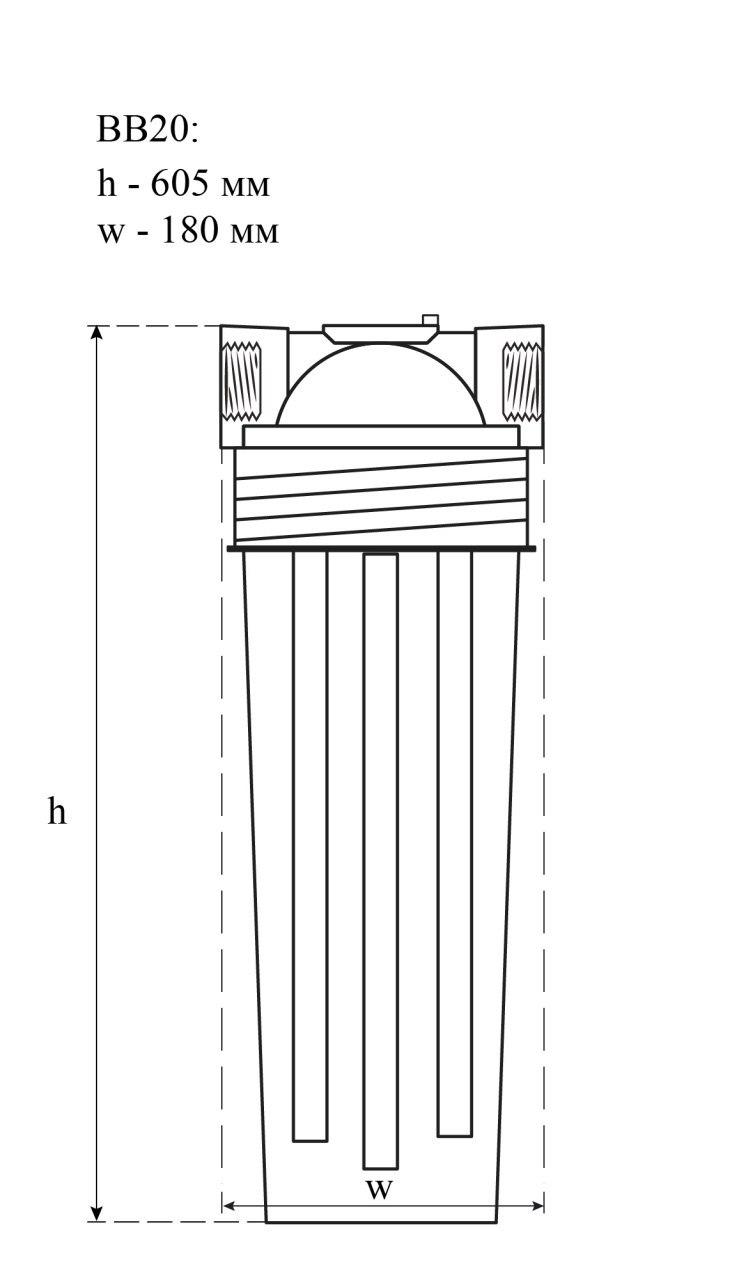

Height - 605 mm
Diameter - 180 mm
Thread diameter - 1 "
The filter capacity is no more than 1 m3 / h **
The maximum water pressure is up to 0.6 MPa (6 atm).

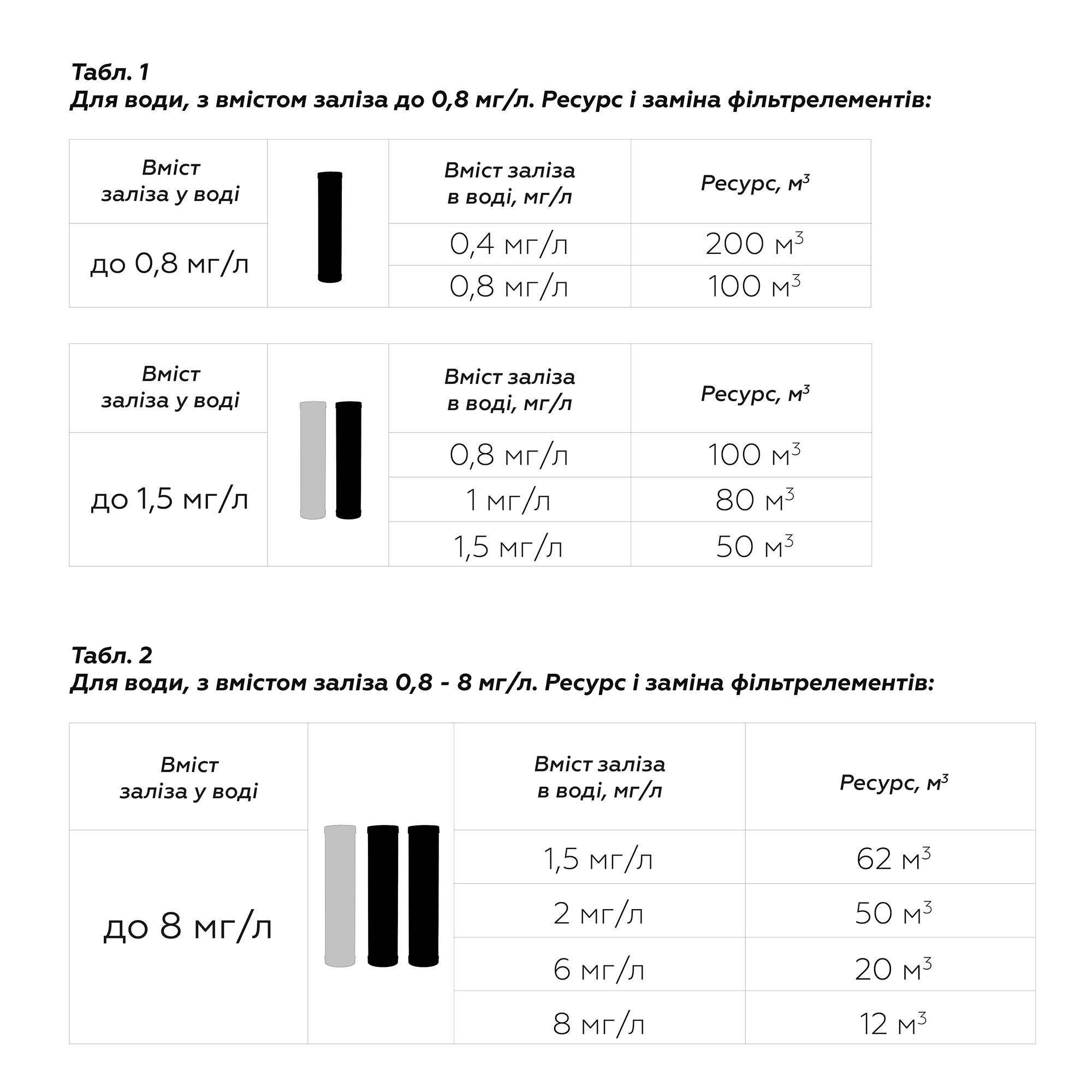

* The resource of the filter element depends on the initial content of iron (Fe) in water (Table 1 - additional photo).
** Optimal filtration result at a performance of 300 l / h


Complete set of the product:
Filter housing - 1 piece;
Cover - 1 piece;

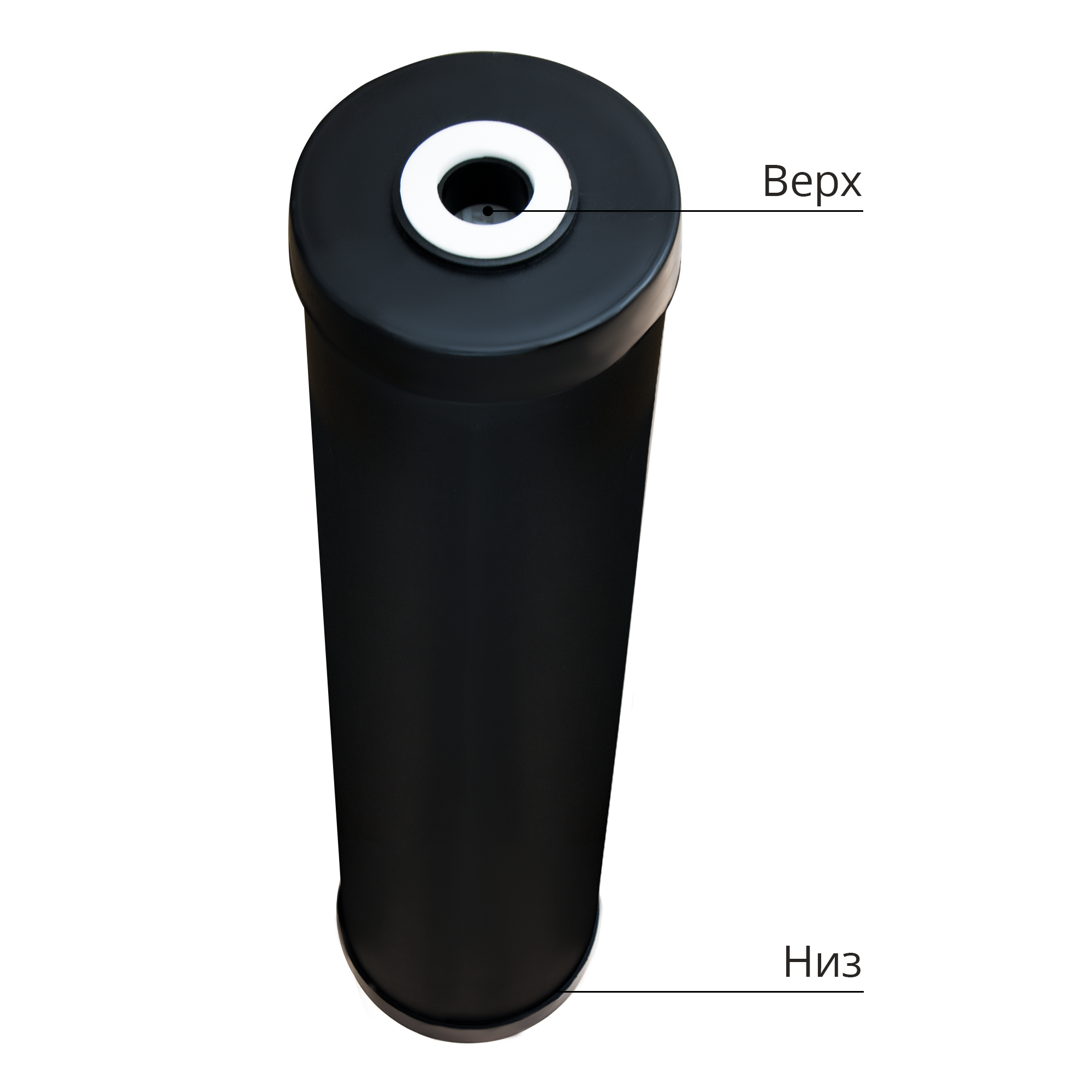

Cartridge "SVOD" Iron removal - 1 pc .;

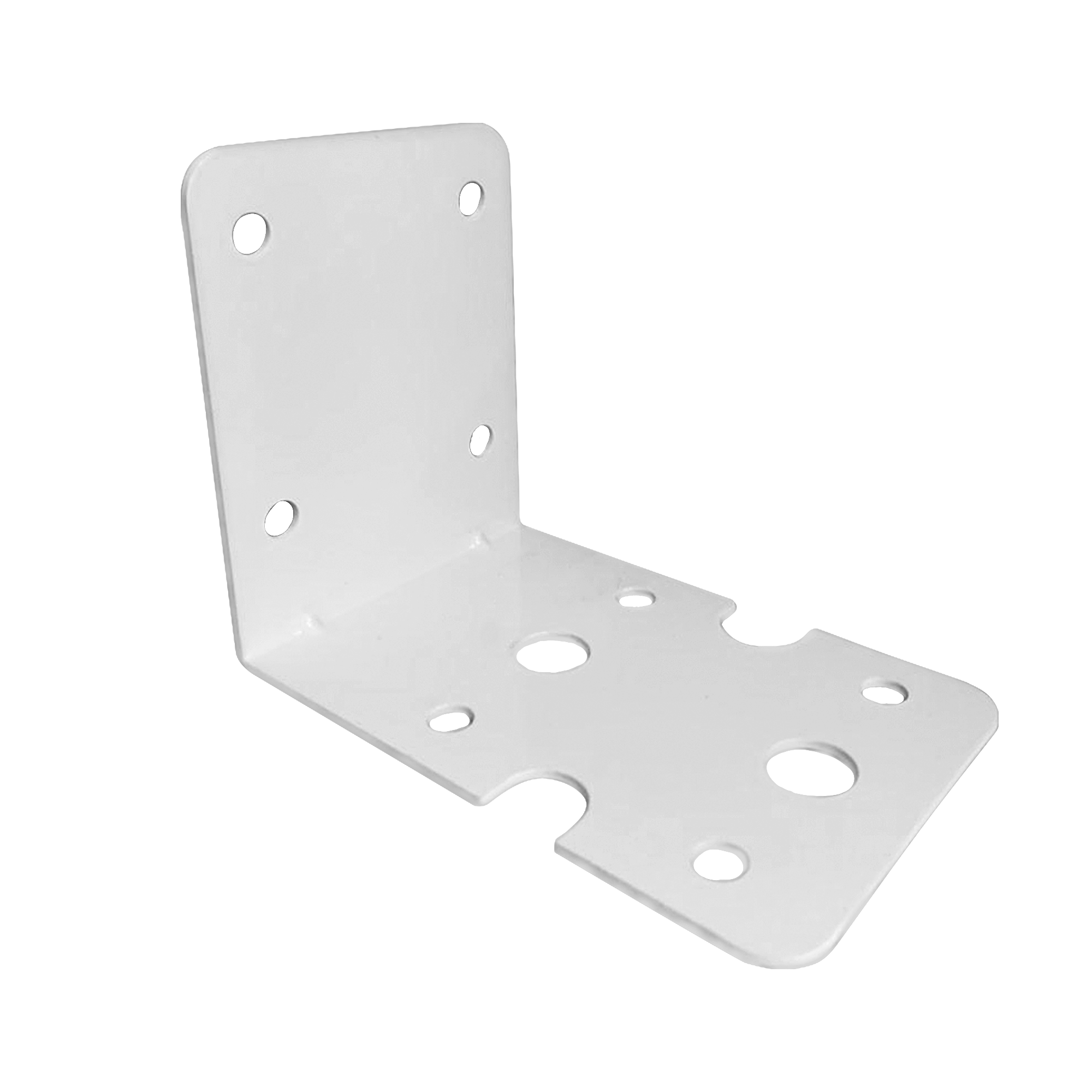

Bracket - 1 piece;
The key for the filter housing is 1 piece;
Packing - 1 piece;
Passport and user manual - 1 pc.

Recommended for water, with an iron content of up to 1.2 mg / l. At Fe values ​​in water of 1.2-2 mg / l, it is necessary to establish a prefilter that oxidizes the "SVOD" Iron removal FTBB20.
